Nobilia overhead cabinets

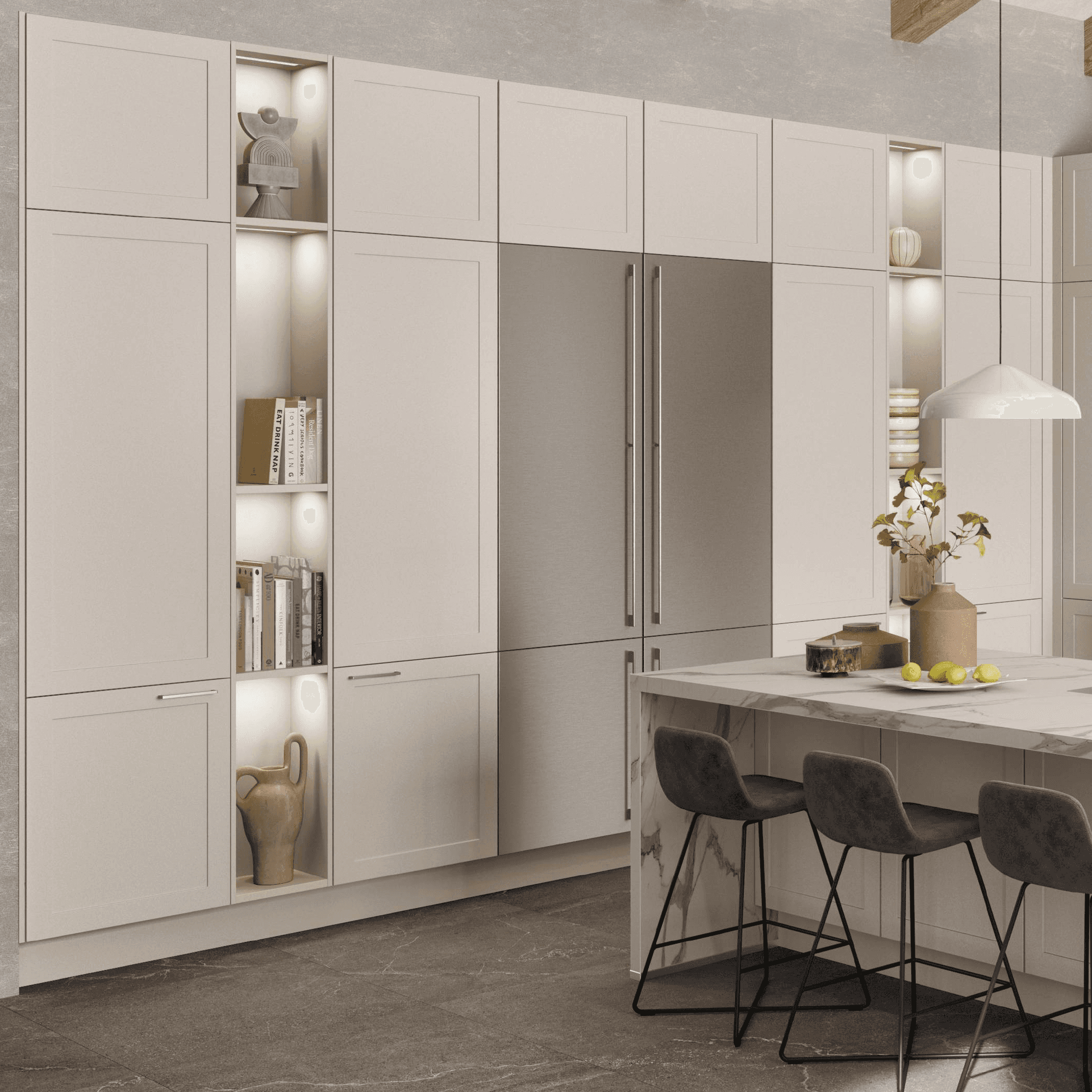

Turn your freestanding refrigerator into a true built-in cabinet solution: Nobilia overhead cabinets close the gap above, create storage space, and make the refrigerator and tall cabinets look like they were made as one piece – from the compact 60 cm solution to the wide side-by-side conversion.

Whether it’s a freestanding refrigerator, fridge-freezer combination, or American side-by-side: you combine the overhead cabinet, side panels, cover shelf, and ceiling filler panel into a clean appliance integration. On this page, you’ll find all Nobilia types, size tables, and planning tips on door opening angles, ventilation, and special dimensions – so doors can open freely and appliances are cooled reliably.

Overhead cabinets are cabinets that use the free space above a freestanding refrigerator or tall cabinet to create additional storage and visually close the kitchen run.

They are mounted above the appliance and ensure that the refrigerator and cabinet run appear as a single piece of furniture – with no gap at the top.

Nobilia overhead cabinets are available in several heights and two depths. Depending on the type, the models are equipped with a flap, 1 door, or 2 doors.

• Carcass heights: 28.8 cm • 36 cm • 43.2 cm • 57.6 cm • 64.8 cm • 72 cm

• Depths: 56.1 cm & 44 cm

• Heights & depths can be adapted to the required dimensions on request.

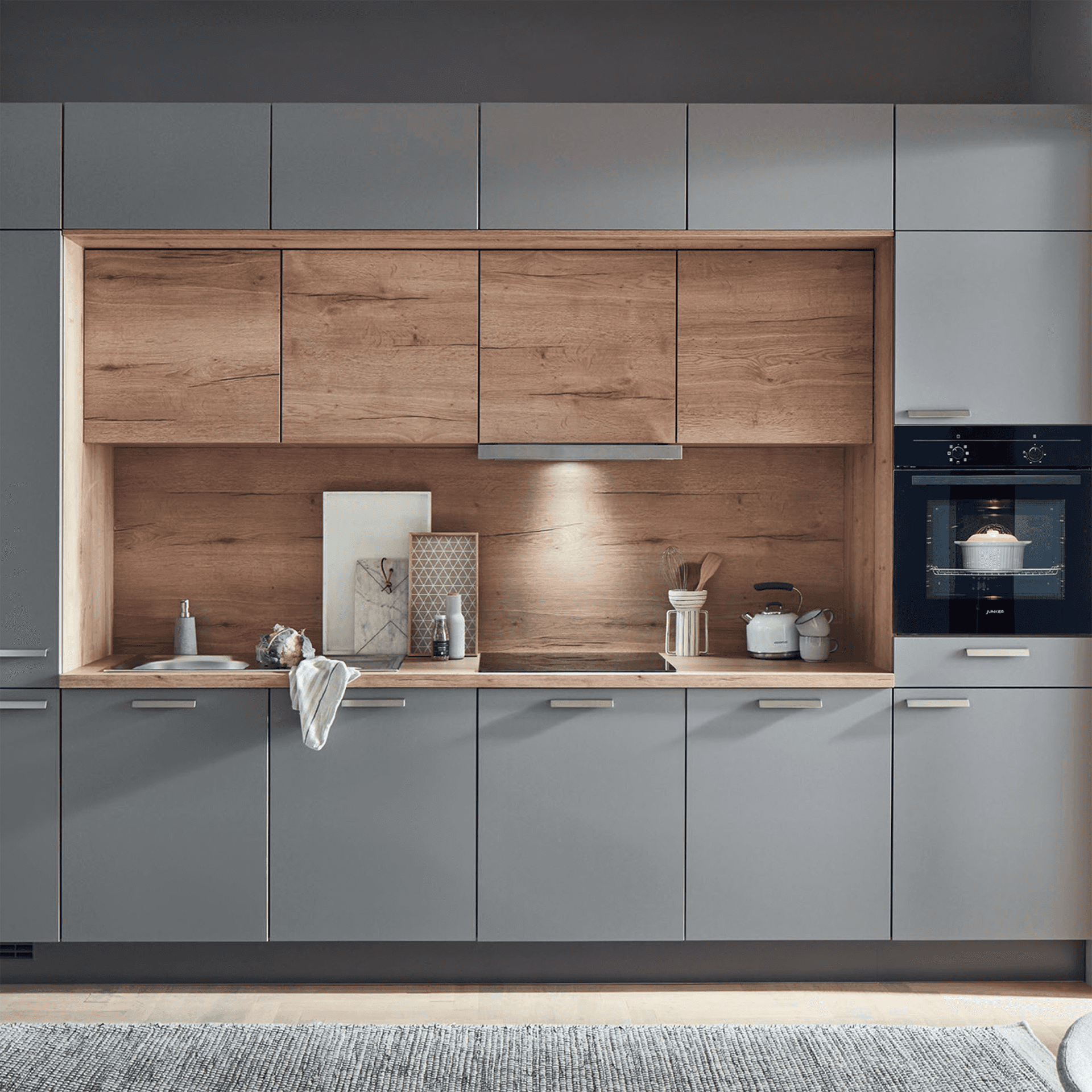

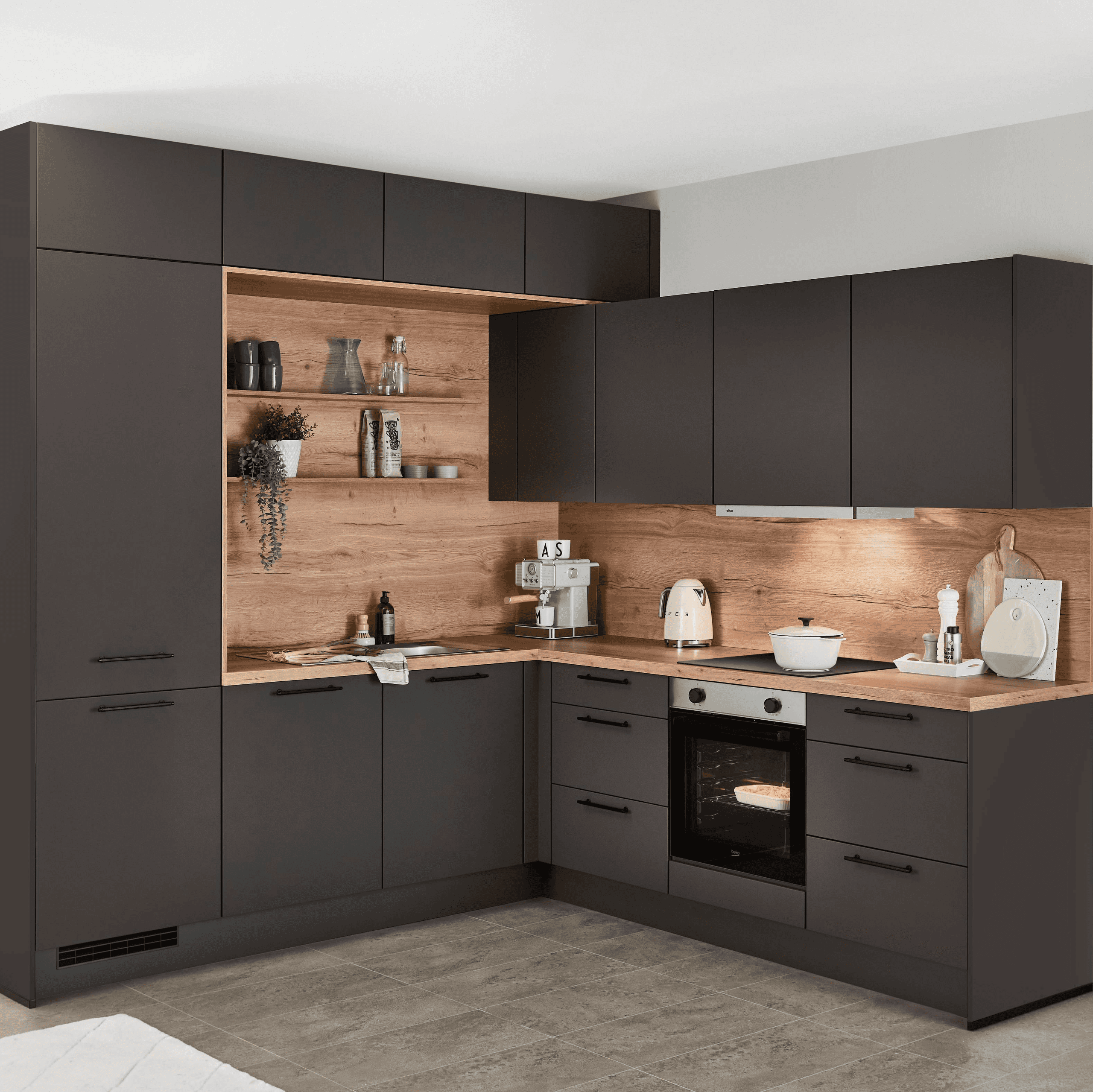

Yes. Thanks to integrated heavy-duty hangers (DCSA & WINS), Nobilia top cabinets and overhead cabinets can also be used as wall-mounted, extra-deep wall cabinets. The fittings are suitable for concrete, sand-lime brick, and perforated brick, and reliably support even heavy, depth-reduced carcasses.

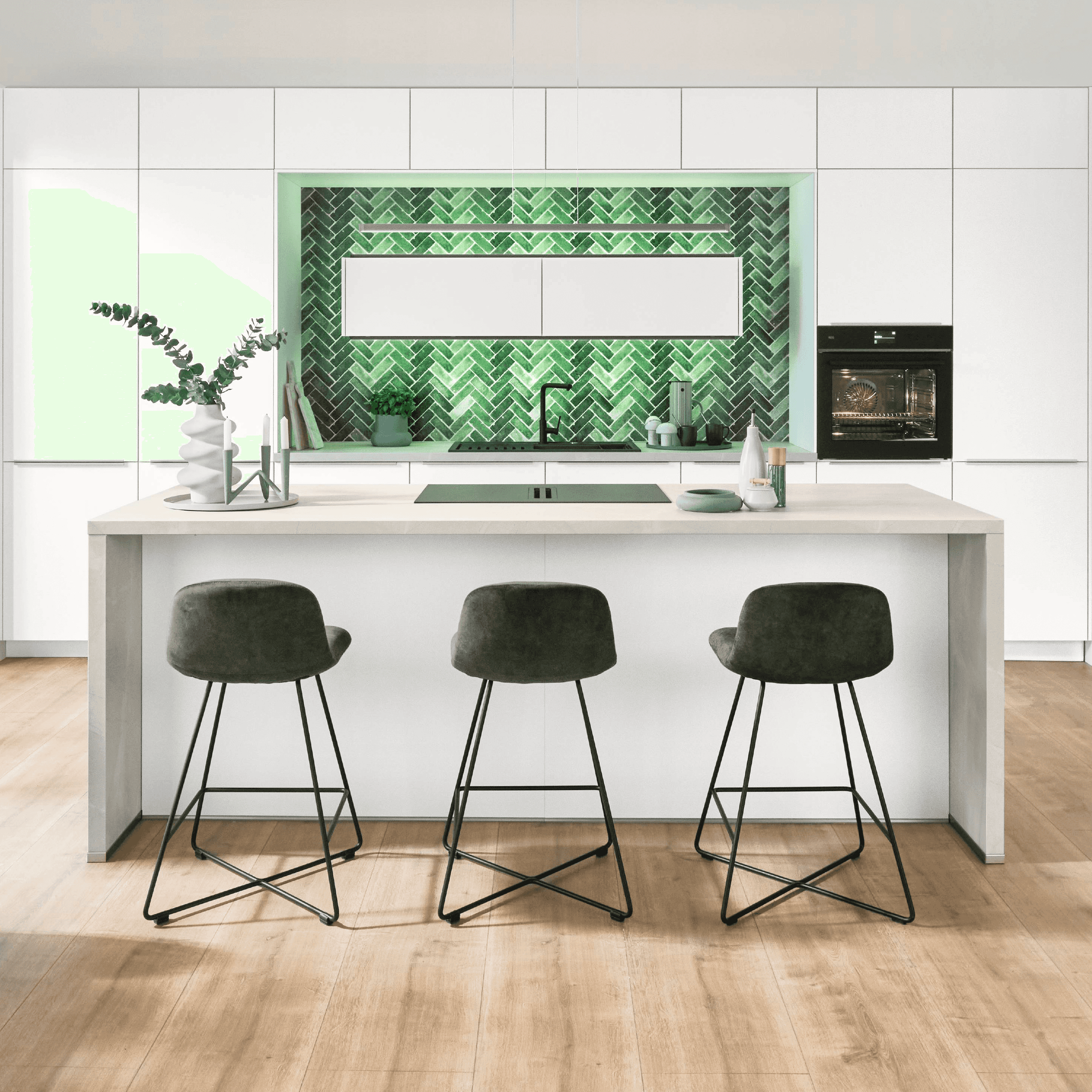

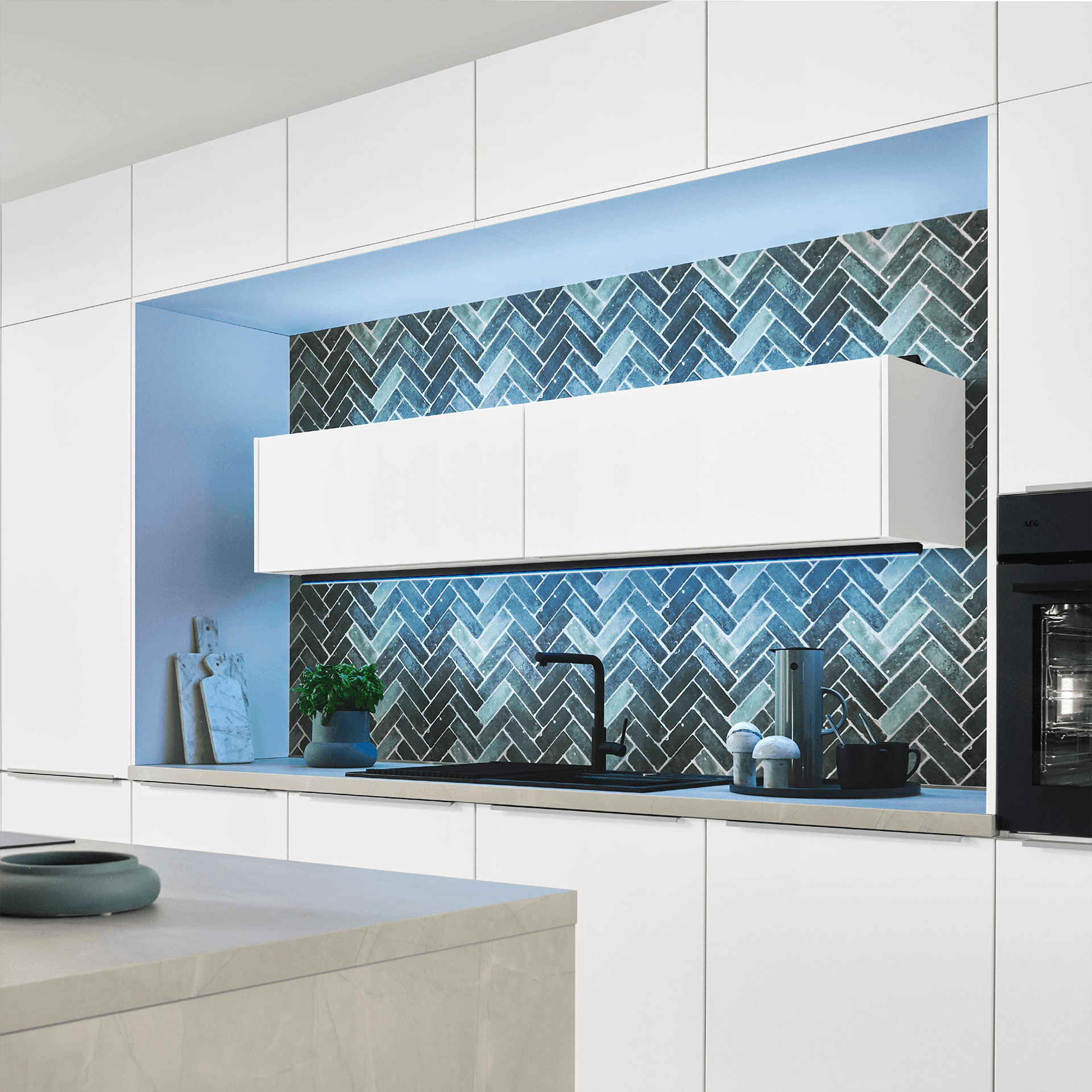

In modern designs – as often seen on Pinterest or Instagram – the extra-deep top cabinet is mounted flush with the top edge of the tall cabinet. Below it, a classic 36 cm wall cabinet with a depth of 35 cm follows, creating an elegant two-level look.

For a clean transition, a thin cover shelf (10 mm or 16 mm, e.g. ADB1059 / ADB1659) is recommended, as it conceals the underside of the upper cabinet and completes the lines. If you want a particularly clean front design, you can also plan the cabinets handleless with Push-to-Open (PTO5-BS).

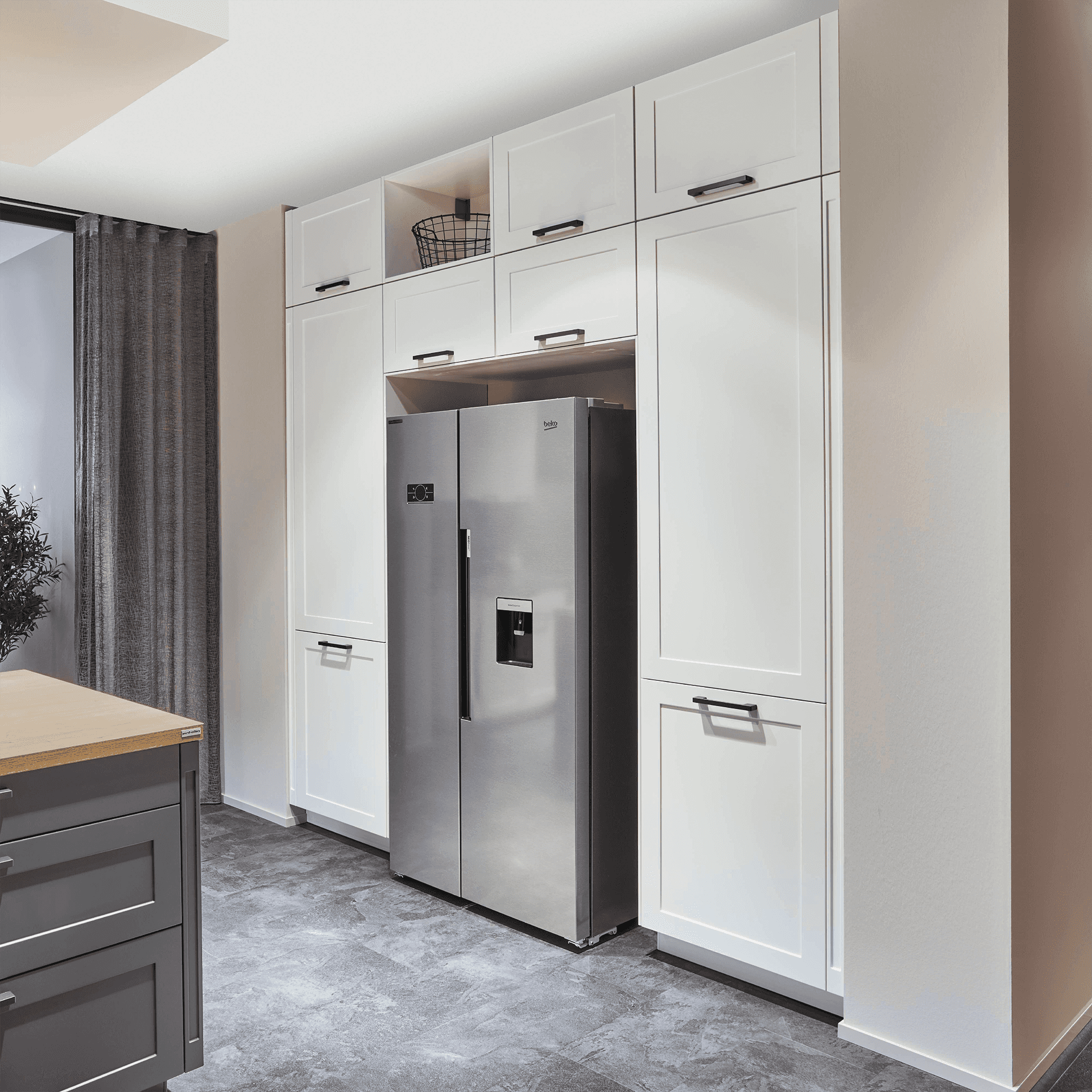

An American side-by-side refrigerator can be perfectly integrated into the kitchen run with Nobilia overhead cabinets. You combine an overhead cabinet with a depth of 56.1 cm, two end panels, and a cover shelf so that the refrigerator looks like a complete appliance surround.

How to plan the surround step by step:

1. Choose the depth: Use a Nobilia overhead cabinet with a depth of 56.1 cm so that it sits flush above the refrigerator.

2. Plan side panels: Use two end panels (HWR) to frame the refrigerator at the sides and visually complete the appliance area.
   Tip: The panel should extend to the end of the refrigerator carcass – not to the end of the door. This allows the doors to open fully without hitting anything.

3. Select a suitable overhead cabinet: Choose a UFK cabinet that is slightly wider than the refrigerator. Pay attention to the available heights (28.8–72 cm) for a harmonious overall look.

4. Install a cover shelf: Fit a cover shelf underneath the overhead cabinet. It conceals the underside of the cabinet and ensures a clean, enclosed appearance.

5. Check the door opening angle: Make sure the side-by-side does not catch on the panel when opening – especially with wide freezer compartments that need to swing fully open.

6. Consider custom dimensions: If the width or height does not fit, Nobilia can adapt the panels or the UFK cabinet at the factory – ideal for tight niches or tall appliances.

Create a clean, integrated refrigerator surround with perfectly matching Nobilia overhead cabinets. Choose height, depth, version, and accessories – or let us create the ideal solution directly for your freestanding refrigerator or side-by-side.

Do you need help with dimensions, door opening angles, or custom-made solutions? We’ll be happy to support you with the complete planning.

To prevent the overhead cabinet from looking like an “added box,” the right accessories are needed: panels, filler strips, cover shelves, and ceiling filler panels neatly close side joints, ceiling areas, and appliance edges and ensure a continuous front appearance.

Filler strips UFKPK
Filler strips in carcass material compensate for side niches and neatly finish overhead cabinets against the wall.

• UFKPK 10-36 – filler strip for overhead cabinets,
  Height: 360 mm, Width: 100 mm, with U-seal as wall connection for overhead cabinets AS

• UFKPK 10-72 – filler strip for taller overhead cabinets,
  Height: 720 mm, Width: 100 mm, also with U-seal overhead cabinets AS

Front filler UFKPD
If the front look is to continue seamlessly, front fillers are used:

• UFKPD 20-36 – front filler for overhead cabinets,
  Continuous front material, two shelves top and bottom, 1 carcass side, 200 mm wide, 561 mm deep overhead cabinets AS

This allows refrigerator surrounds to be adapted precisely to room and appliance dimensions – without visible “makeshift solutions.”

A gap often remains between overhead cabinets and the room ceiling. Ceiling filler panels visually close this area and create the look of a fixed built-in furniture solution:

• DBF ceiling filler panel in front material
  Height: 194 mm, Width: 2229 mm, minimum installation height: 45 mm overhead cabinets AS

It is ideal for extending tall cabinet and overhead cabinet runs harmoniously up to the ceiling.

Side end panels frame refrigerator surrounds and tall cabinet runs, giving the block a calm look and stability.

Panels at carcass height (HWK) – for a continuous plinth panel:

• HWK10-258, HWK16-258, HWK25-258, HWK50-258
  End panel at carcass height, Depth: 583 mm, Height: 2232–2580 mm
  For plans with overhead cabinets on tall cabinets, the plinth panel is continued across the front. Overhead cabinets AS

Floor-standing panels (HWA) – for a closed side finish down to the floor:

• HWA10-258, HWA16-258, HWA25-258, HWA50-258
  End panel incl. floor profile, Depth: 583 mm, Height: 2425–2580 mm overhead cabinets AS

All panels are available in numerous finishes, e.g. matt, high gloss, lacquer laminate/lacquer, premium matt, lacquer ultra-high-gloss, lacquer matt, perfect matt, lacquer high gloss, and Xtra decors.

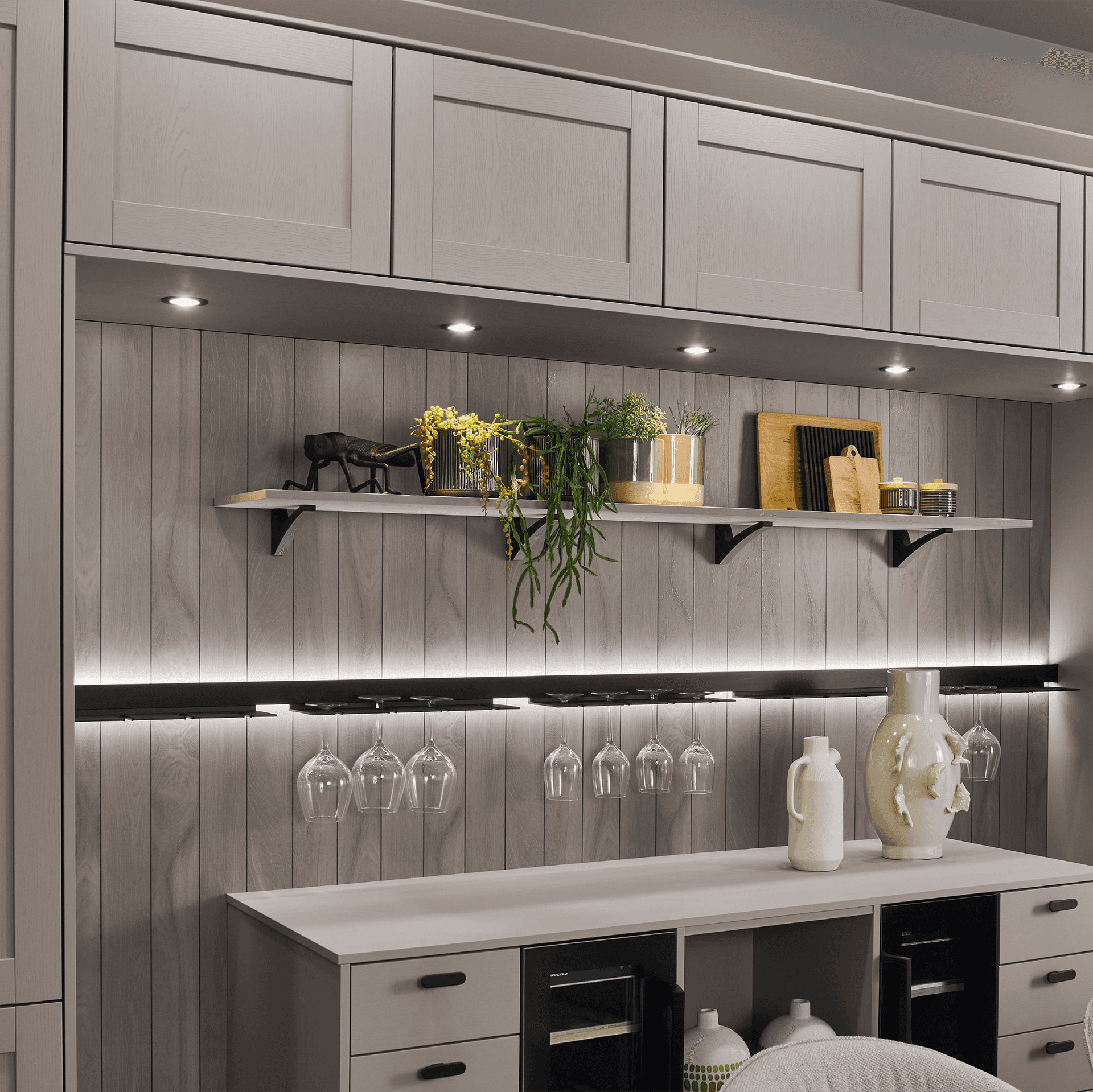

Cover shelves are used:

• between a top/overhead cabinet and a wall cabinet

• above refrigerators or tall cabinets

• to conceal cabinet undersides and complete the lines

Thin cover shelves with a thickness of 10 mm or 16 mm are especially recommended (e.g. ADB1059 / ADB1659), optionally in front, worktop, or carcass decor. They provide a flush finish and visually connect cabinet runs into one block.
