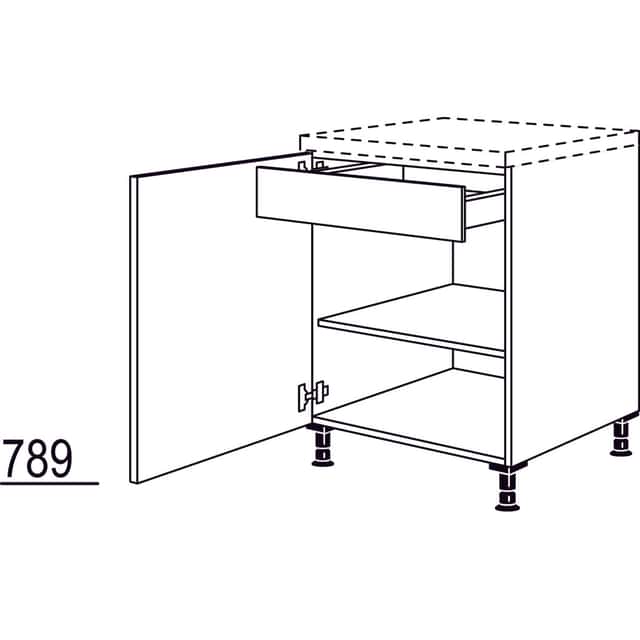

Mini base cabinets are the underestimated gap fillers of kitchen planning. The Nobilia UDI40-43 with a width of 40 cm and a carcass height of 57.6 cm fits under cooktops, seating areas, or next to wall projections – with inner drawer for hidden additional storage space.

Technical data:
• Width: 40 cm | Carcass height: 43.2 cm (43.2 cm)
• Side depth selectable: 56.1 cm (standard) or 46.1 cm – both free of charge in the configurator | Special depth 35 cm carcass depth on request (order by phone or email) | Total depth incl. front: approx. 58.2 cm (56.1 cm) or 48.2 cm (46.1 cm)
• Drawer system: nBOX slate gray | Side height: 10.7 mm
• Configuration: 1× inner drawer
• Cushioning: SoftStoppPro bidirectional (Soft Close & Soft Open)
• Optional: push-to-open (MP-PTOSA 7962) for an additional charge | Standard on Line ONE types
• Load capacity nBOX: drawer max. 30 kg | front pull-out max. 30–55 kg (depending on width/depth) | Total cabinet load capacity 40–70 kg
• 5-year manufacturer's warranty | Made in Germany

The 2.8 mm HDF back panel is protective-lacquered on both sides and screwed to the carcass. Structural component, not an inserted panel – and the forward-mounted installation prevents moisture buildup behind the cabinets. 1.2 mm PP edge on all front edges: more impact-resistant than paper edges and free from swelling or peeling even after years. The Nobilia n144 grid system ensures that XL and Maxi heights always harmonize with the corresponding tall cabinet system heights. Planned once – permanently consistent joint appearance.

Scope of delivery:
• Largely assembled at the factory – you set it up, Nobilia has built it.
• Installation material in Nobilia quality included.
• Plinth package at no extra charge: front panel at least 220 cm + side panel 110 cm + all connectors.
• Plinth height 7, 10, 15 or 20 cm | Color selection in the cabinet configurator.

Direct delivery from the Nobilia factory: delivery time approx. 3–4 weeks, free shipping. Nobilia-trained contact in Frankfurt am Main – even discontinued Nobilia models are often still available.

Existing customer? Use the decor number from the original purchase contract. Dealer names vary – Nobilia original codes are the reliable basis for matching repeat purchases.
